How to Build a Biogas Plant? Key Equipment and Project Considerations

Building a biogas plant is more than simply installing an anaerobic digester. A reliable project requires coordinated design of feedstock treatment, digestion, gas purification, gas storage, safety equipment and final energy utilization.

For investors, farm owners and EPC contractors, understanding the major components of a biogas plant project is the first step toward making the right equipment decisions.

1. Feedstock and Pretreatment

The first stage is determining what organic materials will be treated.

Common feedstocks include livestock manure, agricultural residues, food waste, wastewater sludge and other biodegradable organic materials.

Different materials have different moisture content, organic loading and digestion characteristics. Therefore, the feedstock should be evaluated before designing the plant.

2. Anaerobic Digestion

The anaerobic digester is the core of the biogas production process.

Organic materials are decomposed by microorganisms in an oxygen-free environment, producing biogas and digestate.

The digester size depends on factors such as daily feedstock volume, hydraulic retention time, organic loading and expected biogas production.

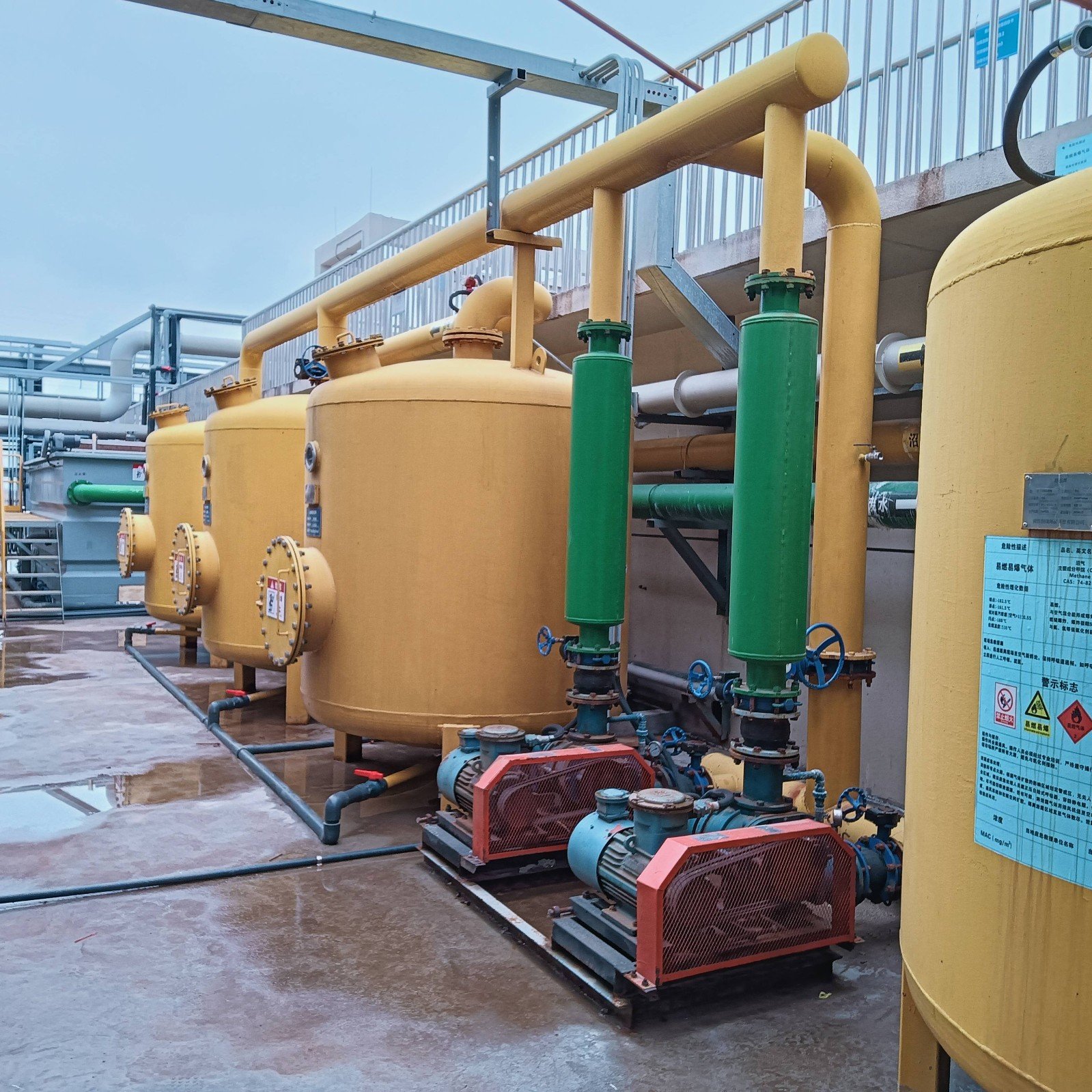

3. Biogas Desulfurization

Raw biogas normally contains hydrogen sulfide. Therefore, biogas desulfurization equipment is an important part of many biogas projects.

A biogas desulfurization tower can be installed before gas utilization equipment to reduce H₂S concentration.

The required system should be selected according to gas flow rate, H₂S concentration and downstream equipment requirements.

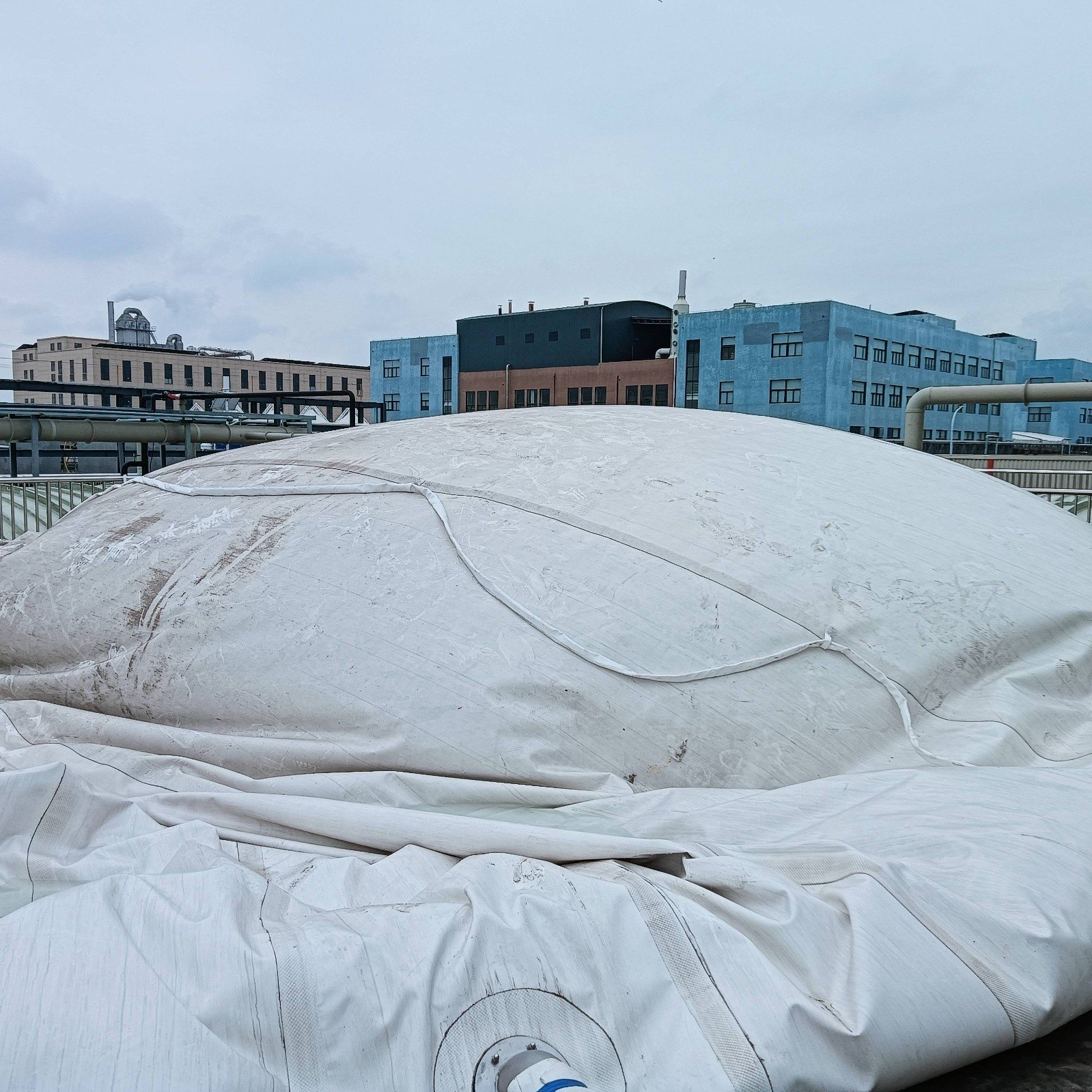

4. Biogas Storage

Biogas production and gas consumption are not always perfectly synchronized.

A storage system can help balance production and utilization.

Depending on the project design, storage solutions may include flexible gas storage systems or larger tank-based systems.

For large industrial projects, assembled tanks and bolted tanks can provide modular installation advantages.

5. Biogas Flare

Safety is another important consideration.

A biogas flare can be used to safely combust excess biogas when the gas cannot be utilized or when maintenance is being performed.

The flare system should be selected according to gas flow and project operating conditions.

6. Gas Utilization

After purification, biogas can be used in different ways.

Potential applications include electricity generation, heating, boilers and biomethane production.

The appropriate utilization technology depends on the scale and economics of the project.

7. Project-Specific Equipment Selection

There is no single equipment configuration suitable for every biogas plant.

A small farm-based project may require a relatively simple system, while a municipal or industrial project may require multiple treatment and utilization stages.

When selecting a biogas equipment manufacturer, project owners should consider engineering capability, manufacturing experience, equipment customization and installation support.

8. On-Site Installation

For large equipment, installation conditions should be considered from the beginning of the project.

Modular equipment and bolted tank structures can be transported in sections and assembled on site.

This can be especially useful for projects in areas where transportation of large prefabricated structures is difficult.

Conclusion

A successful biogas plant project requires more than selecting individual machines. Digestion, desulfurization, storage, safety and gas utilization should work together as an integrated system.

If you are planning a new biogas plant or upgrading an existing facility, start with accurate feedstock information, expected biogas production and gas quality. These parameters provide the foundation for selecting suitable biogas plant equipment.

Working with an experienced manufacturer can also help project owners move from preliminary planning to customized equipment design and on-site installation.
