Product Details

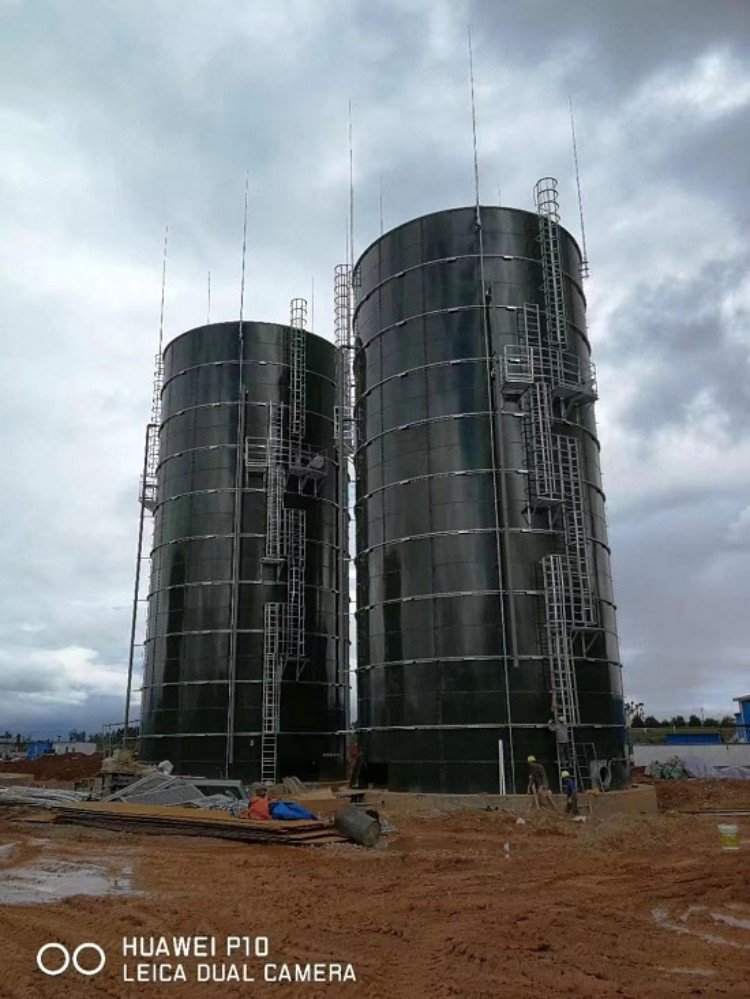

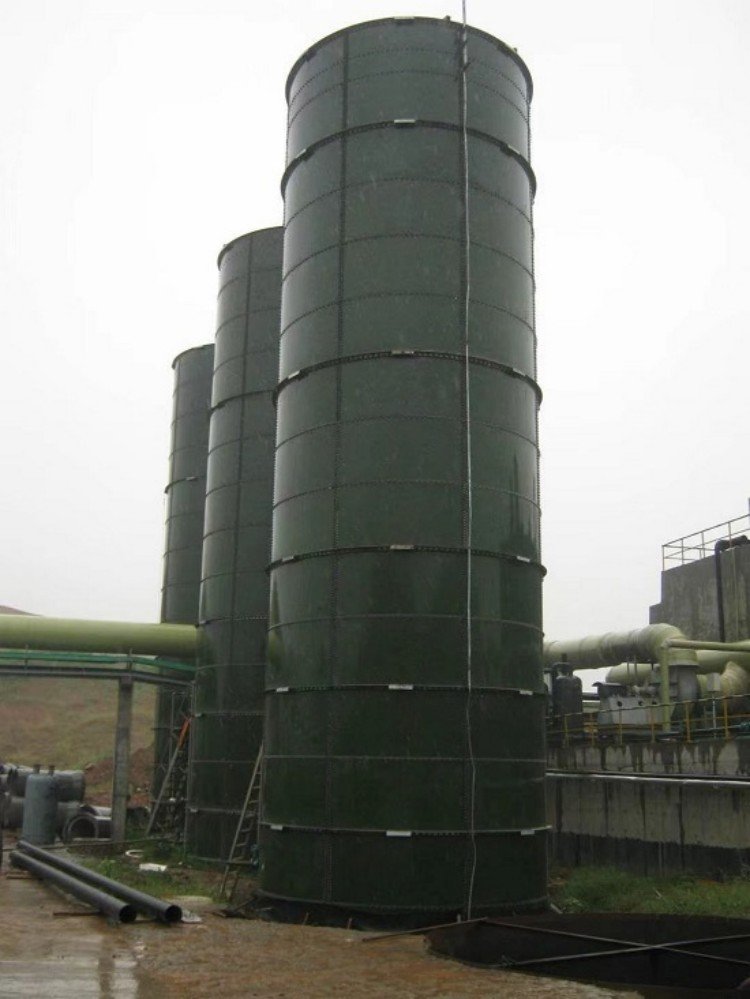

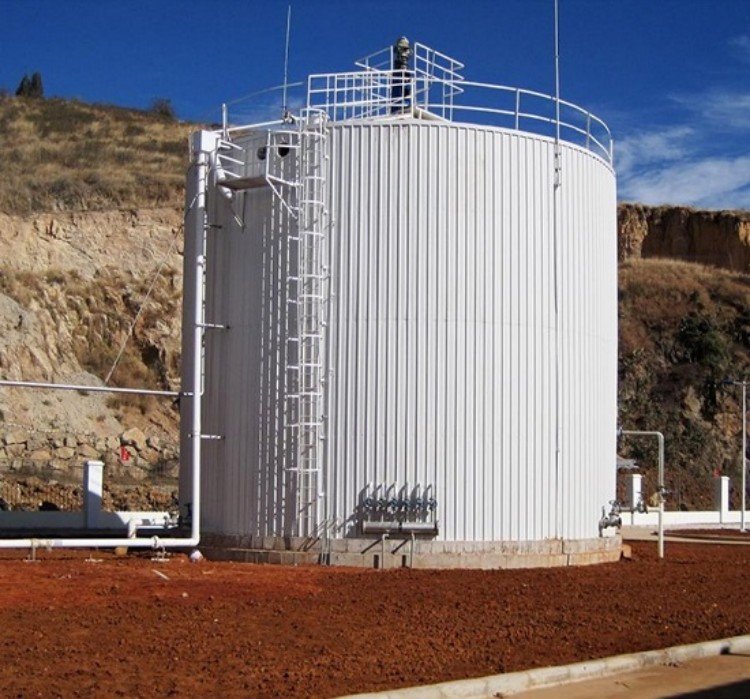

Types of Enamel Assembled Tanks & Their Ideal Applications
A. Standard Enamel Tanks (For Water & Wastewater)
Description: Tanks constructed from standard-thickness enamel panels, designed for the storage and treatment of water, municipal wastewater, and industrial effluent with moderate chemical loads.
Ideal Applications:
o Municipal drinking water storage
o Process water and rainwater collection tanks
o Primary and secondary wastewater treatment clarifiers and aeration tanks
o Equalization and storage basins

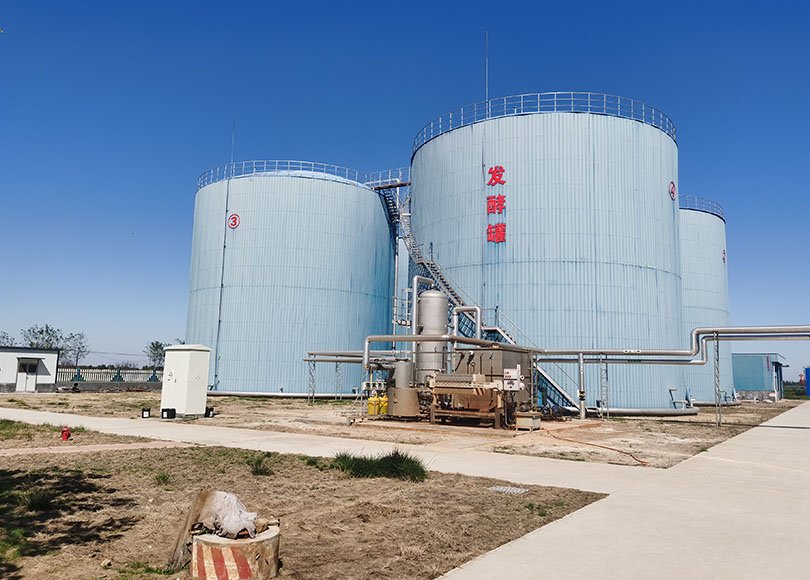

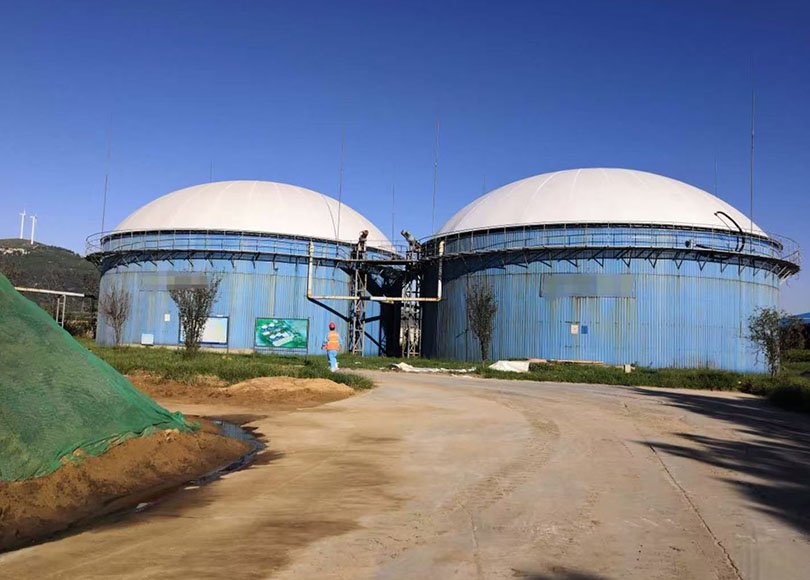

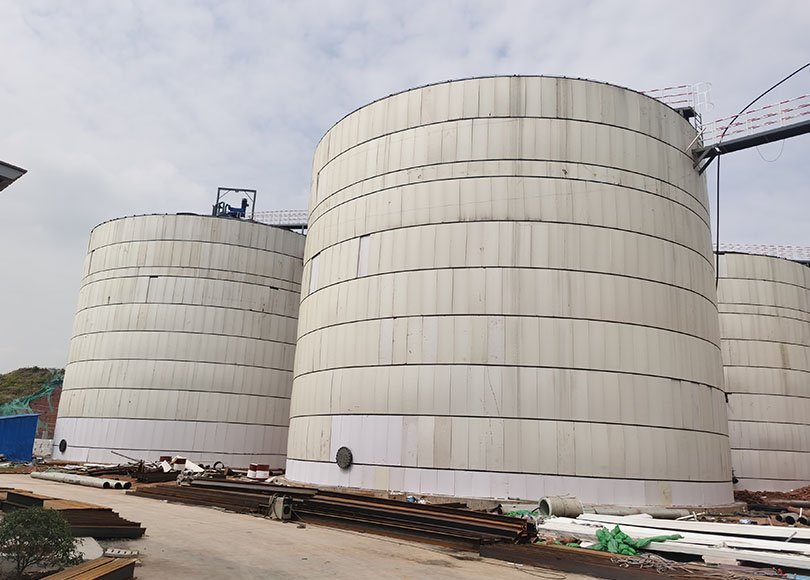

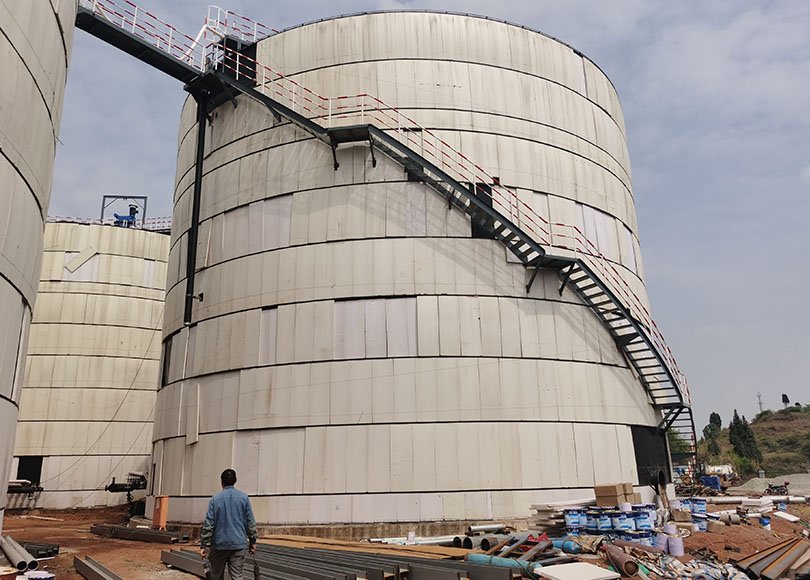

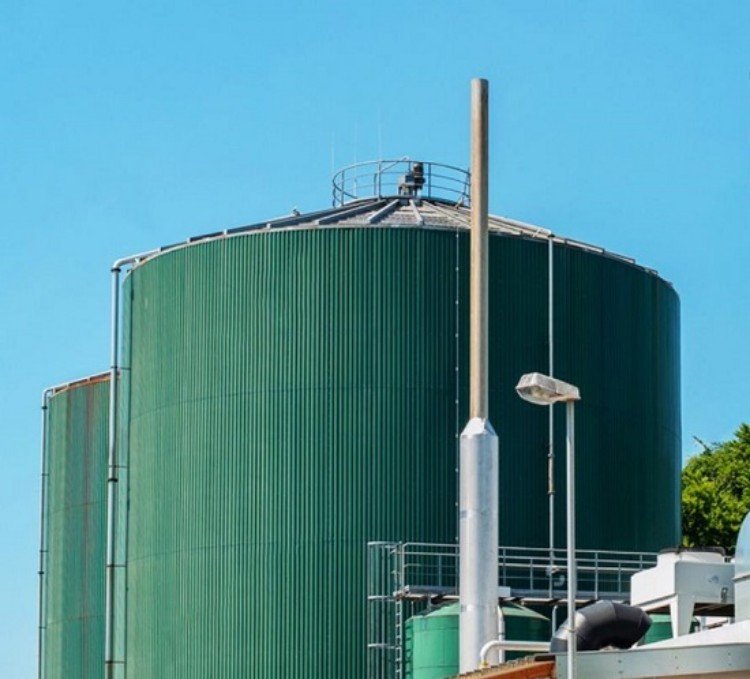

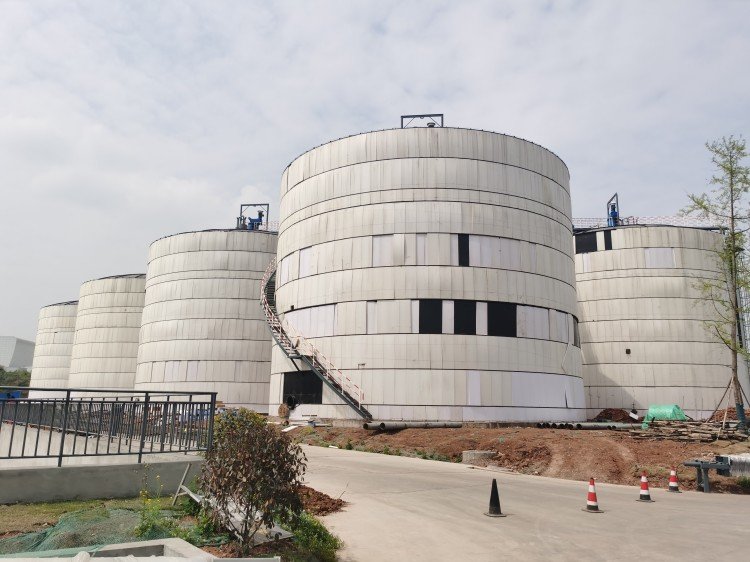

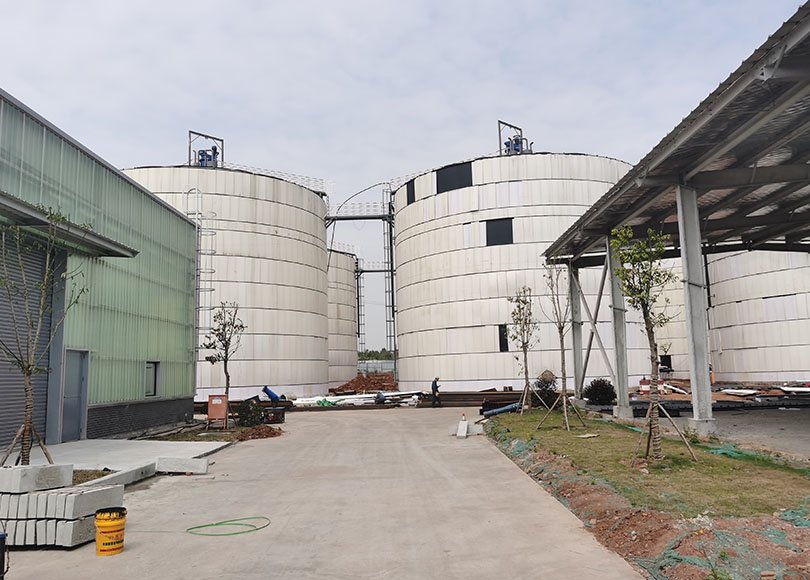

B. Reinforced/Heavy-Duty Enamel Tanks (For Anaerobic Digestion & Agitation)
Description: Built with thicker-gauge enamel steel and reinforced structural supports to withstand the aggressive internal environment of anaerobic digestion, including high loads, pressure fluctuations, and mechanical agitation.
Ideal Applications:
o Anaerobic digesters for biogas production (agricultural, WWTP, co-digestion plants)
o Tanks with submersible mixers or gas lances
o Fermentation tanks in bio-industries
o Storage of sludges and high-solid content materials
C. Specialty Chemical Tanks
Description: Utilizes high-resistance enamel formulations and specialized seals designed to handle extreme pH levels and specific aggressive chemicals.
Ideal Applications:
o Storage of acids, alkalis, and brines
o Chemical dosing and mixing tanks in industrial processes
o Leachate storage and treatment at landfills
Product Parameters
Comprehensive Technical Parameters
Our tanks are custom-designed to your project specifications. The following table provides our standard range of capabilities.
Parameter | Standard Enamel Tanks |
Reinforced/Heavy-Duty Tanks | Specialty Chemical Tanks |
Notes |
Tank Dimensions & Capacity
Diameter Range |
3m - 40m+ |
5m - 40m+ |
3m - 25m | Virtually unlimited diameter; larger sizes achievable with internal supports. |
Height Range |
3m - 15m |
6m - 20m+ |
3m - 12m | Height is often limited by substrate bearing capacity. |
Volume Range |
Up to 10,000 m ³ |
Up to 15,000 m³ |
Up to 5,000 m³ | Custom volumes available based on diameter and height. |
Panel Specifications
Panel Thickness |
3.0 mm - 5.0 mm |
5.0 mm - 8.0 mm |
4.0 mm - 6.0 mm | Thicker steel used for larger diameters, higher pressures, and aggressive environments. |
Parameter | Standard Enamel Tanks |
Reinforced/Heavy-Duty Tanks | Specialty Chemical Tanks |
Notes |
Enamel Coating Thickness |
≥ 250 µm |
≥ 250 µm |
≥ 300 µm | *Fused at 850°C+ to the steel substrate for a permanent bond.* |
Material Properties
Corrosion Resistance (pH) |
3 ≤ pH ≤ 12 |
3 ≤ pH ≤ 12 |
2 ≤ pH ≤ 14 | Excellent resistance within this range. Special enamel for extreme pH. |
Abrasion Resistance |
Excellent |
Excellent |
Excellent | The glass-enamel surface is harder than quartz, highly resistant to abrasion. |
Structural Design
Design Wind Speed |
Up to 150 km/h |
Up to 200 km/h |
Up to 150 km/h | Designed to site-specific wind load and seismic conditions. |
Roof Options |
Open, Fixed, Dome |
Fixed, Dome, Gas-Holder |
Fixed, Dome | Dual-membrane gas-holder roofs available for biogas storage. |
Floor Options | Enamel, HDPE, | Enamel, HDPE, Concrete | Enamel, HDPE | Enamel floor panels provide a seamless, |
Parameter | Standard Enamel Tanks |
Reinforced/Heavy-Duty Tanks | Specialty Chemical Tanks |
Notes |
Concrete | fully corrosion-resistant tank. |
Sealing System
Seal Type |
EPDM Gaskets |
EPDM or PTFE Gaskets |
PTFE or FPM (Viton) Gaskets | *High-grade, chemical-resistant gaskets ensure a 100% watertight seal.* |
Accessories & Fittings
Inlet/Outlet |
Stainless Steel (SS304/316) |
Stainless Steel (SS304/316) | Stainless Steel (SS316), HDPE, PVC |
Nozzles and fittings are compatible with the tank's contents. |
Ladders, Guardrails |
Hot-Dip Galvanized Steel |
Hot-Dip Galvanized Steel |
Stainless Steel or HDPE | Safety accessories included as standard or optional. |
Glossary:
• Enamel (Vitreous Enamel): A glass-based coating fused to steel at high temperature, creating an inert, non-porous, and ultra-durable surface.
• EPDM: Ethylene Propylene Diene Monomer, a synthetic rubber gasket with excellent weather resistance.
• PTFE: Polytetrafluoroethylene (Teflon® ), a high-performance, chemically inert gasket material.
• HDPE: High-Density Polyethylene, often used for tank floors and liners.
• m ³: Cubic meters.
