Industrial-Grade Flexible PVC Water Storage Tanks

Product Specifications & Parameters

Why Choose Our PVC Water Storage Tanks?

• Food-Grade & Potable-Safe

Inner liner meets FDA and NSF 61 standards for direct contact with drinking water. No leaching of plasticizers or heavy metals.

• Collapsible & Portable

Folds flat to a fraction of its operational volume. A 100 m³ tank ships in one standard pallet. Deploy in under 2 hours without heavy machinery.

• UV & Weather Resistant

UV-stabilized outer laminate rated for 15+ years continuous outdoor exposure in tropical, desert, and sub-Arctic climates.

• Fully Customizable

Any volume from 1 m³ to 3,000 m³. Choose shape, color, valve types, inlet/outlet positions, cover mesh, and OEM branding.

• Heavy-Duty Seams

HF-welded seams tested to ≥ 95% of base fabric tensile strength. No stitching, no glue—fully watertight under pressure.

• Global Certifications

ISO 9001 quality management. FDA/NSF-compliant materials. CE marking available. Accepted by international aid agencies and government procurement.

Who Uses PVC Water Storage Tanks?

Agriculture & Irrigation

· Drip irrigation reservoirs

· Livestock drinking water

· Greenhouse water supply

· Rainwater harvesting

· Remote farm water banks

Emergency & Disaster Relief

· Flood/earthquake response

· Refugee camp water supply

· Humanitarian NGO operations

· FEMA & civil defense stockpiles

· Field hospital water systems

Military & Civil Defense

· Field base water supply

· Forward operating base logistics

· Military equipment decontamination

· Field kitchen & sanitation water

· Rapid-deploy potable water systems

Mining & Remote Industry

· Remote mine site water storage

· Construction site water supply

· Oil & gas camp utilities

· Process water buffer tanks

· Dust suppression water reserves

Civil & Infrastructure

· Water utility temporary storage

· Pipeline maintenance reserves

· Municipal emergency reserves

· Fire-fighting water supply

· Seasonal water banking

FAQ

Is the PVC water tank safe for storing drinking water?

Yes. Our standard product range uses food-grade PVC inner liners that meet FDA and NSF 61 standards for potable water contact. The materials are free from harmful plasticizers and heavy metals. We recommend periodic cleaning using standard water tank disinfection procedures (e.g., chlorine flush) for long-term potable water storage.

What is the minimum order quantity (MOQ)?

For standard sizes (5 m³, 10 m³, 50 m³, 100 m³), our MOQ is 1 unit. For fully custom dimensions or OEM/branded orders, MOQ is negotiable—typically 5 units or more depending on complexity. Contact us for exact pricing for your project volume.

How do I install and set up the tank on site?

For pillow-style bladder tanks up to 50 m³, installation requires only a level, compacted ground surface—no foundation works or civil works needed. Unfold the tank, connect inlet/outlet valves, and begin filling. Larger onion tanks or frame-supported rectangular tanks require a simple metal frame assembly (supplied), which two workers can complete in 2–4 hours. Detailed installation guides and video tutorials are provided with every order.

Can I order a custom size not listed in your standard range?

Absolutely. Every tank we manufacture is made-to-order. If you need a capacity of, say, 75 m³ or a specific footprint of 12m × 6m × 1.5m, our engineering team will design the tank to your exact requirements. Simply send us your desired capacity, dimensions (if any), and application details, and we'll provide a tailored technical drawing and quotation within 2 business days.

How long does production take? What is the typical lead time?

Standard sizes (in-stock material) typically ship within 7–15 working days after order confirmation and deposit. Custom sizes with non-standard dimensions or OEM branding typically take 15–30 working days. We also maintain inventory of common sizes for clients who require rapid emergency deployment. Express production is available for urgent humanitarian or disaster-response orders—contact us directly.

What warranty do you provide?

All tanks carry a 2-year manufacturing defect warranty covering seam failures and material delamination under normal conditions. Damage caused by sharp objects, chemical contamination, or improper installation is not covered. We provide free replacement panels or repair kits for warranty claims. Our tanks are designed for 10–15 years of service life with proper maintenance.

Can the tank be repaired if punctured?

Yes. Our PVC tanks are designed to be field-repairable. We supply a PVC repair kit with every tank (patches, bonding agent, instructions). Small punctures under 10 cm can be repaired in the field in under 30 minutes without draining the tank. Larger damage requires draining and a patching procedure detailed in our maintenance manual. Replacement panels are available from us for severe damage.

Do you offer OEM or private-label manufacturing?

Yes. We are an experienced OEM manufacturer with white-label programs for distributors, aid organizations, and government agencies. We can print your company logo, apply custom color schemes, include branded packaging, and produce to your specified technical standards. NDA agreements are standard practice. Please contact our sales team with your branding requirements and we'll prepare a dedicated OEM proposal.

Tailored Design & Customization Service

Every water storage challenge is different. Our in-house engineering team works directly with you to design the optimal tank solution for your site conditions, water volume requirements, and operational constraints.

How Our Custom Order Process Works

From initial inquiry to delivery—our typical custom order timeline:

01 Share your requirements: capacity, application, site dimensions, environmental conditions

02 Our engineers prepare a technical drawing and product specification within 48 hours

03 We issue a detailed quotation covering materials, lead time, and delivery options

04 On approval, production begins. Factory inspection available before shipment

05 Delivery worldwide. Full documentation: test reports, material certs, installation guide

You May Also Be Interested In

TPU

TPU Flexible Fuel Storage Tanks

Military-grade collapsible fuel bladders for diesel, gasoline, jet fuel (Avtur) and aviation fuel. 1 m³–3,000 m³. UN38.3 / MIL-SPEC compliant.

Biogas

Red Mud PVC Biogas Storage Bags

High-performance biogas collection and storage membrane bags for anaerobic digesters. Methane-resistant, UV-stabilized, pressure-rated.

Accessories

Tank Fittings & Valve Assemblies

BSP/NPT inlet valves, overflow fittings, pressure gauges, fill-level indicators, and pump connectors compatible with all our flexible tank products.

Industry Overview

The Global Flexible Water Tank Market: Trends & Applications

The global flexible and collapsible water storage tank market has grown steadily over the past decade, driven by rising demand in three major sectors: emergency preparedness and humanitarian aid, large-scale agricultural irrigation in water-stressed regions, and military & civil defense logistics. Increasing frequency of extreme weather events—droughts, floods, and infrastructure disruptions—has made portable, rapidly deployable water storage an essential asset for governments, NGOs, and private enterprises alike.

PVC (polyvinyl chloride) fabric remains the dominant material in collapsible water tank construction, favored for its combination of tensile strength, UV resistance, food-grade certification capability, chemical inertness, and cost-effectiveness at scale. As demand has grown, so too has the range of available solutions—from compact 1 m³ household emergency tanks to 3,000 m³ industrial reservoir liners used in mine dewatering or municipal utility projects.

Key application industries include: agriculture and irrigation, military and defense logistics, disaster relief and humanitarian aid, mining and oil & gas field operations, civil infrastructure and water utilities, and events management requiring temporary water supply.

Types of Flexible PVC Water Storage Tanks

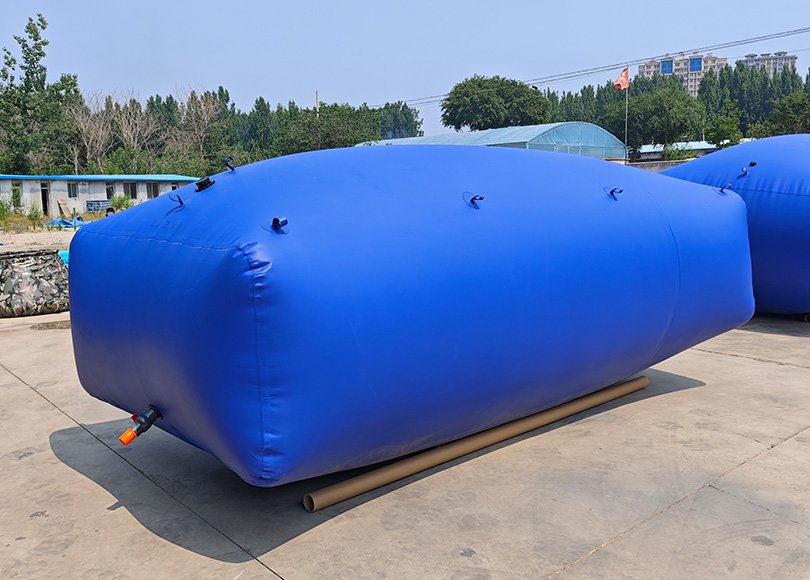

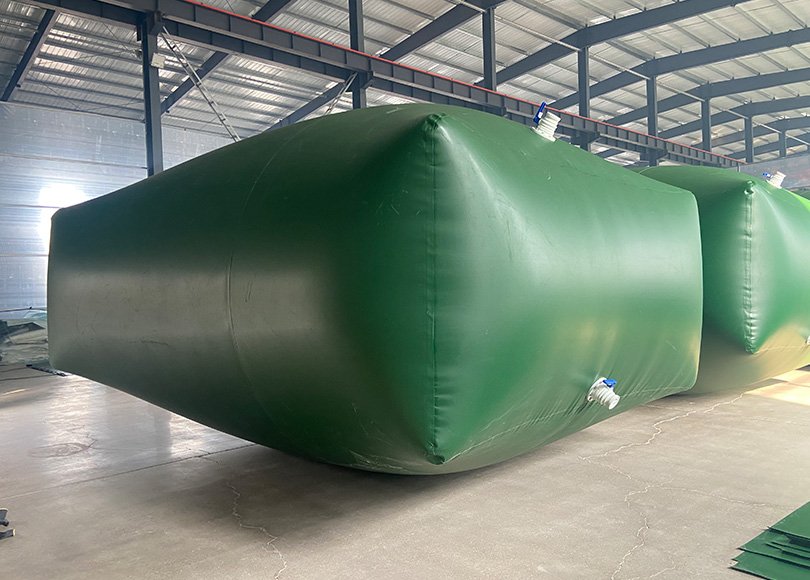

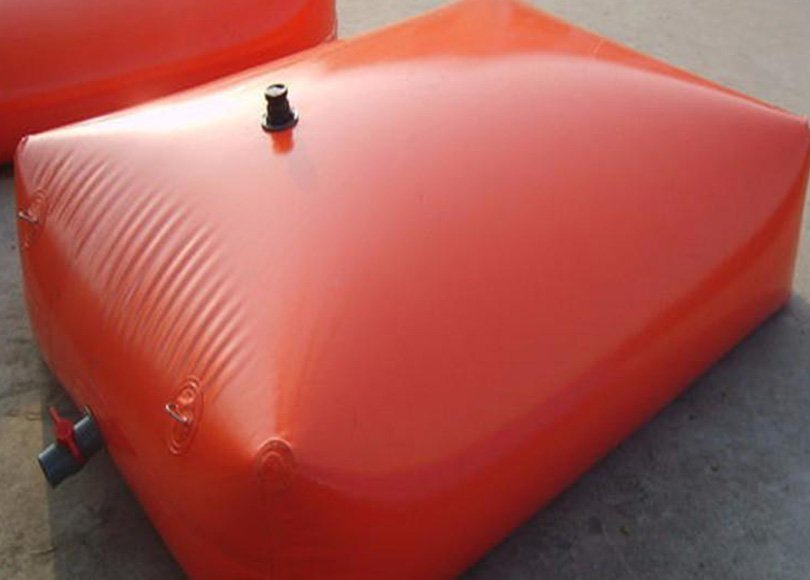

• Pillow / Bladder Tanks

Self-supporting when filled; flat when empty. Suitable for ground-level deployment on any compacted surface. Sizes from 1 m³ to 500 m³. Most popular for agriculture and emergency relief.

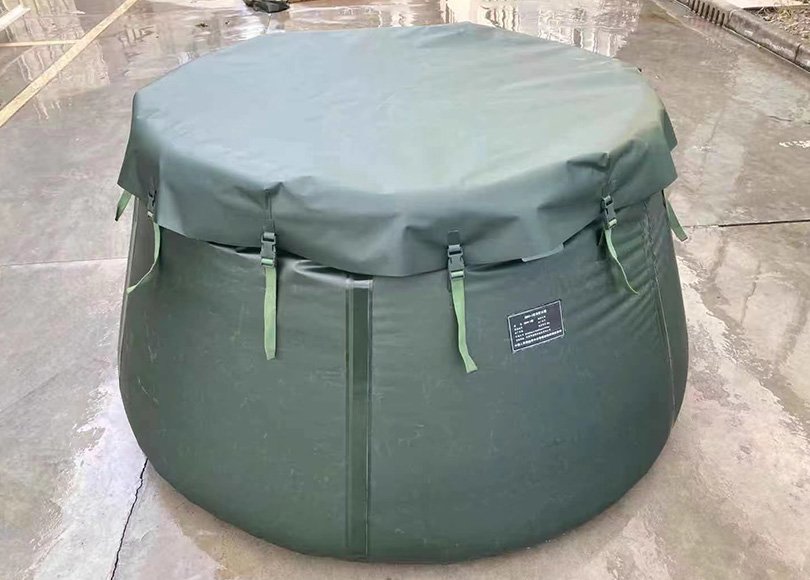

• Onion Tanks (Self-Supporting)

Conical or bowl-shaped design with collapsible frame. Stable without external support structure. Common in fire-fighting operations and military forward base logistics. Fast setup.

• Frame-Supported Rectangular Tanks

Steel or galvanized frame holds the PVC liner in a rigid rectangular form. Suitable for large volumes (100–3,000 m³) in semi-permanent installations. Easy liner replacement.

• Elevated / Overhead Water Tanks

Designed for gravity-feed water distribution systems. UV-resistant, opaque black coating prevents algae growth. Used in remote villages, construction camps, and field hospitals.

• Underground Liner Tanks

PVC liner installed into excavated pit or existing concrete structure. Prevents leakage in secondary containment and water reservoir refurbishment projects.

• Food-Grade Potable Water Tanks

FDA/NSF-certified inner liner for direct drinking water storage. Used by humanitarian organizations, rural water supply projects, and emergency stockpile programs.

How to Choose the Right PVC Water Tank: Buyer's Guide

Selecting the right flexible water tank requires evaluating several technical and operational factors. This guide covers the key decision criteria for procurement managers, project engineers, and purchasing agents.

1. Define Your Required Capacity

Calculate total storage volume based on peak daily consumption × number of days' supply required, plus a safety buffer of 20–30%. For irrigation, factor in peak-season demand. For emergency stockpiles, consult national emergency management guidelines for minimum per-capita reserves.

2. Assess Your Site & Installation Environment

Consider ground type (soft, rocky, sloped), available footprint, access for delivery vehicles, climate (UV load, temperature extremes, freeze risk), and whether the installation is temporary or semi-permanent. These factors determine which tank shape and support structure is most appropriate.

3. Verify Material Standards for Your Application

For potable water: require FDA/NSF 61-certified inner liner. For outdoor installation: require UV-stabilized outer laminate. For cold climates: specify cold-temperature-rated PVC down to –30°C or –40°C. For chemical storage: verify chemical compatibility with the stored liquid. Never use a standard water tank for fuel or chemical storage.

4. Evaluate Fittings & Connectivity Requirements

Specify thread type (BSP or NPT), valve sizes, number of inlets/outlets, and whether you need overflow prevention, level gauges, or pump connection ports. A mismatched fitting on a large tank is a costly problem. Provide your piping specifications to the manufacturer before ordering.

5. Check Certifications & Quality Documentation

Request ISO 9001 quality management certificates, material safety data sheets (MSDS) for the PVC compound, hydrostatic test reports for the specific tank, and any regional regulatory compliance documents needed for your jurisdiction. Reputable manufacturers provide these as standard.

6. Consider Total Cost of Ownership (TCO)

Compare not just purchase price but logistics cost (weight and volume shipped), installation labor, maintenance frequency, and expected service life. A high-quality PVC tank with a 15-year lifespan and local repair capability often provides significantly lower TCO than cheaper alternatives requiring replacement every 3–5 years.

OEM & Custom Manufacturing: From Concept to Delivery

We are both a manufacturer and an engineering partner. Our custom service is designed for buyers with unique requirements that standard catalog products cannot meet.

Custom Water Tank Service — What We Offer

• Raw Material Supply: We source high-tenacity PVC fabric from certified suppliers with consistent quality. Material technical data sheets available on request.

• Size Design by Volume: Tell us your required capacity (in m³ or gallons/litres) and site footprint constraints. Our engineers calculate the optimal tank dimensions and wall geometry to match your space and volume targets.

• Application-Specific Engineering: We consider your use case—agricultural irrigation at 45°C ambient, Arctic military deployment at –35°C, or rapid-deploy disaster relief—and specify the correct material weight, UV coating, insulation layer, and valve configuration accordingly.

• Quote Turnaround: Submit your requirements online or by email. Standard quotation within 2 business days. Custom engineering drawings within 5 business days. Volume pricing and OEM program details available for order quantities above 10 units.
