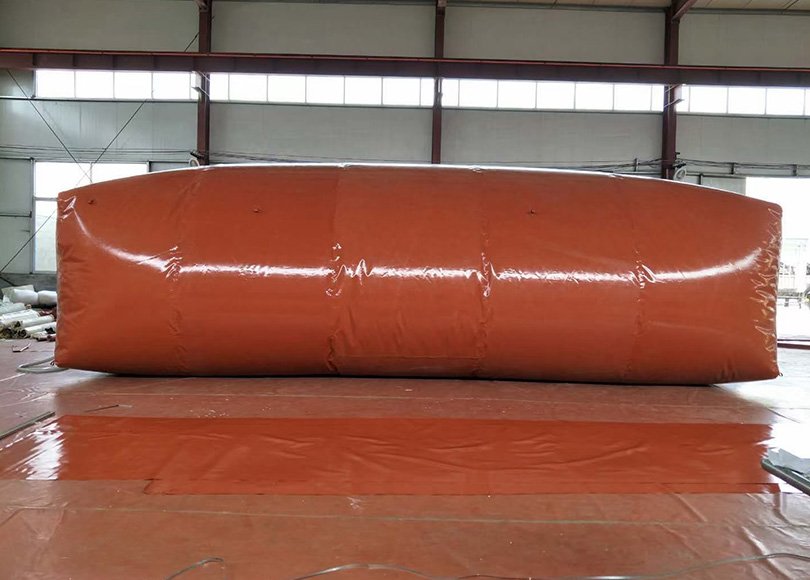

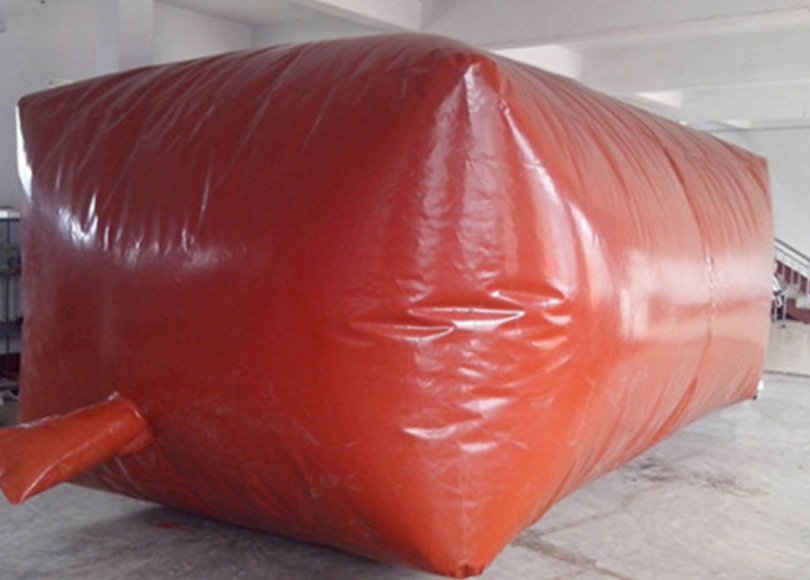

Red Mud PVC Biogas Storage Bags for Anaerobic Digestion Systems

How We Size Your Biogas Storage Bag

One of the most common mistakes in biogas system design is incorrect sizing of the gas holder. An undersized bag causes gas flaring or loss; an oversized bag wastes capital and space. We provide complimentary sizing engineering with every order.

Biogas Bag Volume Sizing — Quick Reference

Rule of thumb: Gas holder volume = Daily gas production (m³/day) × Desired storage hours ÷ 24

Example: A 200-head pig farm produces approximately 80 m³ of biogas per day. To store 8 hours of gas production: 80 × 8 ÷ 24 = 27 m³ bag volume → We recommend a 30 m³ bag with 10% safety margin.

Send us your feedstock type, quantity, and digester design for a precise volume recommendation and quotation.

Performance Advantages

Why Red Mud PVC for Biogas Storage?

• Methane-Barrier PVC Compound

Red Mud PVC formulation significantly reduces methane permeation vs. standard PVC, preserving gas yield and reducing greenhouse gas fugitive emissions.

• H₂S Resistant

Resists hydrogen sulfide (H₂S) at concentrations typical of agricultural biogas (up to 5,000 ppm) without liner degradation or accelerated aging.

• UV Stabilized for Outdoor Use

UV-stabilized outer layer rated for 10–15 years continuous outdoor exposure in tropical and subtropical climates—no UV-protective shelter required.

• Volume Sized by Gas Production Rate

We engineer bag volume to match your specific daily gas output, feedstock type, and desired storage hours—not a generic catalog size.

• HF-Welded, Pressure-Tested Seams

Every bag is seam-welded by high-frequency process and individually pressure-tested before shipment. Zero-leak guarantee under specified operating pressure.

• Field-Repairable

Supplied with PVC repair kit for field patch repair of punctures. Extended service life achievable through periodic inspection and timely minor repairs.

Where Are Biogas Storage Bags Used?

Livestock Farming

· Pig farm biogas plants

· Cattle / dairy farm digesters

· Poultry manure biogas systems

· Mixed livestock farm energy projects

· Rural biogas-to-cooking fuel systems

Municipal & Sewage

· Wastewater treatment plant digesters

· Sewage sludge biogas-to-energy

· Municipal solid waste AD plants

· Landfill gas collection covers

· Urban biogas distribution systems

Food & Agri Industry

· Food processing effluent digesters

· Brewery & distillery waste biogas

· Slaughterhouse waste AD systems

· Palm oil mill effluent (POME) biogas

· Fruit and vegetable waste digesters

Agricultural Biogas Energy

· On-farm biogas electricity generation

· Agricultural cooperative biogas projects

· Irrigation pump biogas energy systems

· Biogas-to-biomethane upgrading projects

· Carbon credit biogas projects

Development Projects

· Rural electrification biogas programs

· Clean cooking fuel NGO projects

· World Bank / UNDP biogas programs

· Community biogas plants

· School & clinic cooking gas systems

FAQ

What is "Red Mud PVC" and why is it used for biogas bags?

Red Mud PVC is a specific PVC compound formulation that includes mineral pigment additives and a modified polymer blend designed to improve gas barrier performance. The term "Red Mud" refers to the characteristic red-brown color of this compound (unrelated to the industrial byproduct of aluminum refining). In the biogas industry, Red Mud PVC is widely adopted as the material of choice for flexible gas holder membranes because it offers significantly lower methane permeation than standard transparent or black PVC membranes, improving gas retention efficiency and reducing fugitive methane emissions.

How do I know what size biogas bag I need?

The correct bag size depends on three factors: (1) your daily gas production rate in m³/day, which depends on feedstock type and quantity; (2) desired gas storage duration in hours (typically 4–12 hours for cooking applications, 12–24 hours for power generation); and (3) your system operating pressure. A simple formula is: Bag Volume (m³) = Daily Gas (m³/day) × Storage Hours ÷ 24, plus a 10–20% safety margin. Our engineering team provides this calculation free of charge—just share your feedstock type, animal numbers or waste tonnage, and intended gas use, and we'll recommend the right size and provide a quotation within 2 business days.

Is the biogas bag safe to use with hydrogen sulfide (H₂S) in the gas?

Yes. Biogas from agricultural and food waste sources typically contains H₂S at concentrations ranging from a few hundred to several thousand ppm (parts per million). Our Red Mud PVC compound is formulated to resist degradation from H₂S at concentrations up to 5,000 ppm, which covers the vast majority of livestock farm and food waste biogas applications. For unusually high H₂S content (above 5,000 ppm, which may occur in some industrial waste digesters), contact us for a specialist H₂S-resistant liner specification. Note that for downstream equipment (engines, boilers, gas cookers), H₂S desulfurization of the biogas is recommended regardless of bag material.

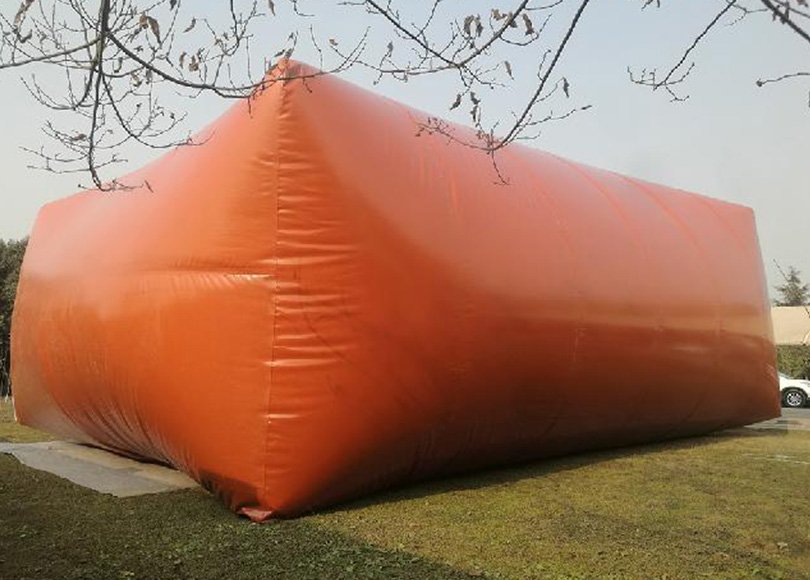

Can the bag be installed outdoors in hot tropical climates?

Yes. Our standard Red Mud PVC bags are UV-stabilized for outdoor installation in full sun exposure, including tropical climates with high UV intensity and temperature extremes. The outer laminate is rated for 10–15 years of continuous outdoor service. For extremely hot climates (ambient above 45°C), we recommend selecting a bag with an additional white or reflective top coating to reduce thermal loading—this option is available on request at minimal additional cost.

How is the bag connected to the digester and gas outlet?

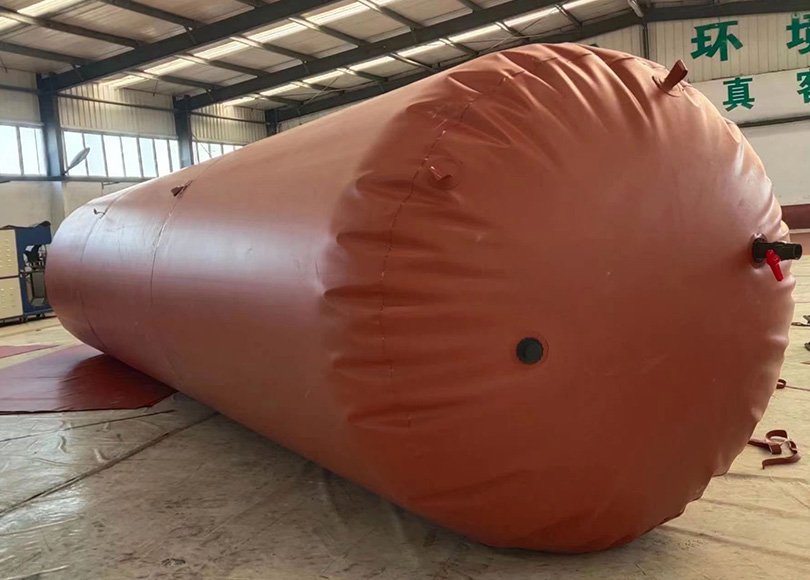

The bag is supplied with pre-fitted connection ports: a gas inlet pipe fitting (matched to your digester outlet pipe diameter, BSP or custom), a gas outlet valve (to connect to your gas distribution pipe or gas stove/engine), a pressure relief valve port for overpressure protection, and a condensate drain for removing water vapor that condenses inside the bag. We supply the fittings as part of the bag system—you connect them to your site pipework during installation. A detailed installation drawing and piping schematic is included with every order.

What maintenance does the biogas bag require?

Biogas bags require minimal maintenance compared to rigid gas holders. We recommend: (1) monthly visual inspection of the outer surface for UV degradation, surface cracking, or pinhole leaks (detected by soapy water brushed on the surface—bubbles indicate a leak); (2) quarterly inspection and cleaning of condensate drain to prevent water logging; (3) annual inspection of valve seals and fitting O-rings, replacing as needed; and (4) keeping the area around the bag free of sharp objects (stones, tools, vegetation with thorns). With these simple maintenance practices, a 10–15 year service life is achievable. A full maintenance schedule is included in our product documentation.

Do you supply the complete digester system or only the storage bag?

We specialize in manufacturing the Red Mud PVC gas storage bag component. We do not supply the concrete or HDPE digester tank itself; however, we can supply the complete membrane cover system for open-top digesters (which simultaneously forms the gas-tight cover and the gas storage volume in a single integrated membrane). We are experienced in supplying to biogas system integrators, EPC contractors, NGOs, and direct project developers. We can recommend reputable digester construction partners in various regions if needed. Contact us with your complete project scope for a systems-level discussion.

What is your minimum order quantity and lead time?

MOQ is 1 unit for custom-sized bags. For development projects or distributors with multiple sites, volume pricing is available from 5 units. Standard production lead time is 10–20 working days after order confirmation and deposit. For large municipal or industrial projects (bags above 500 m³), allow 25–35 working days for production plus testing. Express production available for urgent project timelines—contact us to discuss.

Design Your Biogas Storage System With Us

Every biogas project has a unique feedstock profile, gas production rate, site geometry, and energy end-use requirement. Our engineering team works with project developers, system integrators, and farmers to design the optimal gas holder solution from the start.

Our Custom Biogas Bag Service

• Raw Material Supply: We source certified Red Mud PVC compound with consistent methane barrier performance. Material certificates and H₂S resistance test reports available on request for project documentation and international funding compliance.

• Gas Volume Design by Production Rate: Share your feedstock type and quantity (e.g., 200 pigs, 5 tonnes of food waste per day), and we calculate your expected daily gas production, recommend the appropriate bag volume, and provide a technical drawing—at no charge.

• Application-Specific Design: For floating-drum digesters: we design the membrane cover to fit your digester pit geometry. For separate gas holders: we design the bag footprint to fit your available site area. For pressurized systems: we engineer to your operating pressure specification. For cold-climate projects: we specify cold-rated PVC compound.

• Pricing & Lead Time: Quotation within 2 business days of receiving project details. OEM and bulk pricing for NGO programs and multi-site biogas projects. We supply to World Bank, UNDP, and bilateral aid-funded projects and can provide required procurement documentation.

01 Share feedstock type, quantity & gas end-use

02 Free sizing calculation & technical drawing

03 Quotation with material specs & delivery

04 Production, pressure testing & certification

05 Worldwide delivery with installation guide
