Industrial TPU Collapsible Fuel Storage Bladders

Product Specifications & Parameters

Why TPU—Not PVC—for Fuel Storage?

• Superior Fuel Resistance

TPU offers significantly better resistance to aromatic hydrocarbon permeation than standard PVC. Certified safe for diesel, Jet A-1, gasoline, and lubricating oils without liner degradation.

• Antistatic & Explosion-Safe

Inner antistatic layer and earthing lug prevent static charge build-up during fill operations—a critical safety requirement for all liquid fuel storage applications.

• RF-Welded Seams — Zero Leakage

Radio-frequency welded seams with no adhesive joints. Every unit pressure-tested before shipment. Seam tensile strength ≥ 90% of base material. Zero-leak guarantee.

• Rapid Field Deployment

Deploy a 50,000-litre fuel bladder with 4 persons in under 3 hours. No cranes, no concrete, no civil works. Fold and redeploy multiple times without performance loss.

• Extreme Temperature Rated

Standard formulation operates from –40°C to +70°C—suitable from Arctic logistics to Middle East desert fuel depots without material embrittlement or seal failure.

• MIL-SPEC & NATO Fittings Available

Military-configuration bladders with NATO-standard quick-disconnect fuel fittings, camouflage outer coatings, and low-visibility signatures available for defense procurement.

Where Are TPU Fuel Bladders Used?

Military & Defense

· Forward operating base fuel farms

· Expeditionary fuel supply points

· Military vehicle refuelling stations

· Field aircraft refuelling (Avtur)

· Rapid-deploy logistics support

Aviation & Airports

· Remote airstrip Avtur/Jet A-1 storage

· Helicopter base fuel supply

· Emergency aviation fuel reserve

· Mobile refuelling depots

· Temporary fuel storage during tank maintenance

Mining & Resources

· Remote mine site diesel storage

· Exploration camp fuel depots

· Generator fuel buffer tanks

· Heavy equipment diesel reserves

· Oil & gas field camp fuel supply

Emergency & Disaster

· Disaster response fuel logistics

· Emergency generator fuel reserves

· Humanitarian fuel supply chains

· Civil defense strategic fuel stockpiles

· Post-disaster fuel distribution points

Agriculture & Remote Power

· Remote farm diesel storage

· Agricultural machinery fuel depots

· Off-grid power station fuel reserves

· Seasonal fuel banking

· Fishing vessel fuel storage

FAQ

What fuels can be stored in your TPU bladders?

Our standard TPU fuel bladders are rated for: diesel (EN 590, ASTM D975), gasoline/petrol (unleaded), Jet A-1 / Avtur, JP-4, JP-8, MOGAS, biodiesel up to B100, and lubricating oils. They are not suitable for concentrated acids, strong oxidizers, or halogenated solvents. If you need to store a fuel or chemical not listed, share the SDS (Safety Data Sheet) and we can advise on material compatibility or recommend an alternative liner specification.

Is a TPU fuel bladder safe? What antistatic measures are in place?

Yes, safety is our primary design priority. All fuel bladders include: (1) an antistatic TPU inner layer with surface resistivity below 10⁸ Ω to prevent electrostatic charge accumulation during fill operations; (2) a permanent earthing/bonding lug on the bladder body for grounding to site earth; (3) stainless steel or brass (non-sparking) fittings throughout; and (4) RF-welded seams with no volatile adhesives. We recommend following standard hydrocarbon fuel storage safety procedures, including bonding and grounding during fill/discharge, no-smoking zones, and adequate ventilation.

How does a TPU bladder compare to a steel or fiberglass fuel tank?

The primary advantages of TPU bladders over rigid tanks are: portability and logistics (a 50,000-litre bladder ships in one pallet vs. a multi-truck heavy-lift for a steel tank of equivalent volume); rapid deployment (hours vs. days or weeks for civil construction); no corrosion risk (TPU does not rust); and reusability (deflate, clean, fold, redeploy). Trade-offs include lower maximum working pressure, requirement for level ground, and greater care needed to avoid sharp-object punctures. For permanent, pressurized, or vehicular installations, rigid tanks remain preferable. For expeditionary, temporary, or remote applications, bladders offer decisive logistical advantages.

What is the minimum order quantity? Do you ship globally?

MOQ is 1 unit for standard sizes. OEM/custom orders may have higher MOQ depending on configuration—typically 3 units or more. We ship worldwide via sea freight (FCL and LCL), air freight, and express courier for small units. We have supplied to military, mining, and humanitarian clients in over 60 countries and can prepare full export documentation including MSDS, packing lists, and certificates of origin.

Can the bladder be repaired if punctured in the field?

Yes. We supply a field repair kit with every bladder: TPU-compatible adhesive patches in multiple sizes, surface preparation materials, and a step-by-step repair guide. For small punctures (under 5 cm), field repair is possible after draining the bladder and allowing the liner to dry. For larger damage, we recommend factory repair using RF welding. Replacement panels are available for sections with extensive damage. Field repair instructions are covered in our supplied maintenance manual and supplementary video guide.

How should the bladder be maintained and cleaned between uses?

After use: drain completely, flush with a small volume of fresh fuel to remove residue, allow to drain fully, then fold and store in the supplied carry bag in a dry, shaded environment. Do not store compressed or folded in extreme temperatures for extended periods. For switching between fuel types (e.g., diesel to gasoline), a thorough solvent flush is recommended—contact us for the specific procedure for your fuel combination. Inspect seams and fittings annually; replace O-ring seals every 3–5 years as preventive maintenance. Full maintenance protocols are included in our documentation package.

Are military-specification versions available?

Yes. We manufacture to MIL-SPEC material standards and can supply bladders with: NATO-standard fuel fittings (NATO STANAG 3105 and 3765 compatible); camouflage outer coating (woodland, desert, or custom pattern); low-infrared-signature coatings; enhanced antistatic specification; and heavy-duty abrasion-resistant outer layer for rough ground deployment. We can also provide military-format documentation (data items) on request. Defense procurement orders subject to end-user certificate (EUC) requirements.

Bespoke Fuel Bladder Design & Manufacturing

Every fuel storage challenge is unique. Whether you need a 1,000-litre aviation refuelling bladder for a remote airstrip or a 2,000 m³ field fuel farm for a military base, our engineering team designs the optimal solution for your operational requirements.

Custom Order Process

• Fuel Type & Volume: Tell us the fuel type, required capacity (m³ or litres/gallons), and whether this is a gravity-discharge or pressurized system.

• Site & Environment: Ground type, climate range, deployment duration (temporary or semi-permanent), and logistics constraints (air freight vs. sea freight).

• Fitting Requirements: Inlet/outlet sizes and thread standards (BSP/NPT/NATO), pump type, level measurement method.

• Compliance Requirements: MIL-SPEC, ATEX zone rating, UN/DOT, local fire code compliance—we prepare documentation accordingly.

01 Share requirements via email or inquiry form

02 Engineering review & drawing within 48–72 hours

03 Quotation with material specs & lead time

04 Production & pressure testing at our facility

05 Worldwide delivery with full certification documents

You May Also Need

PVC

PVC Flexible Water Storage Tanks

Food-grade collapsible water storage tanks for irrigation, military field water, emergency relief, and remote site water supply. 1 m³–3,000 m³.

Biogas

Red Mud PVC Biogas Storage Bags

High-performance biogas collection and storage membranes for anaerobic digesters. Methane-resistant, pressure-rated, UV-stabilized. Custom sizes.

Fittings

Fuel-Rated Valve Assemblies & Fittings

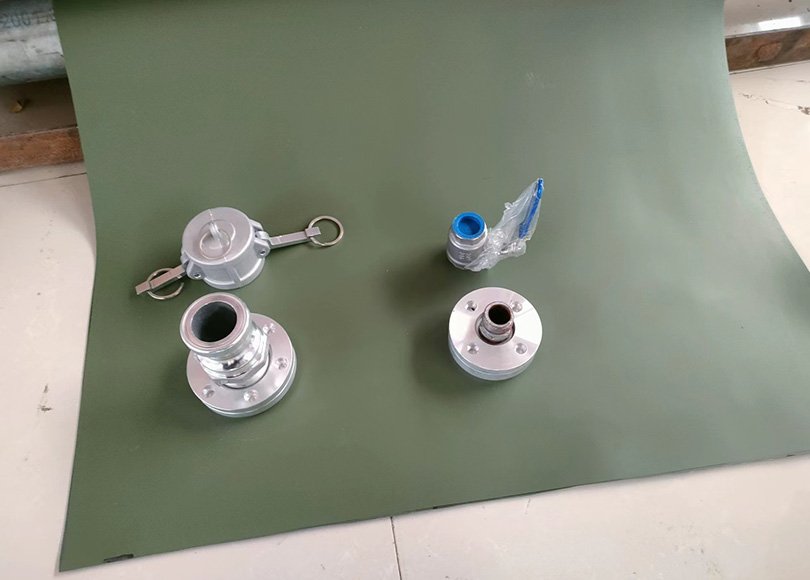

Stainless steel and brass fuel-rated valves, quick-disconnect couplings, pump adaptors, antistatic earthing kits, and level gauges for fuel bladder systems.

Industry Overview

The Global Collapsible Fuel Bladder Market: Applications & Trends

Flexible TPU fuel bladders have become a mission-critical logistics asset across military, aviation, mining, and humanitarian operations. The global flexible fuel tank market has grown substantially over the past decade, driven by the increasing tempo of expeditionary military operations, the expansion of remote natural resource extraction into regions with no fixed fuel infrastructure, and the growing awareness among governments and NGOs of the importance of flexible, rapidly deployable fuel logistics.

TPU (thermoplastic polyurethane) has emerged as the preferred material for fuel bladder construction, displacing older neoprene and natural rubber formulations due to its superior hydrocarbon resistance, wider temperature operating range, lighter weight per unit volume, and better long-term durability. Modern TPU bladders can achieve a 15–20 year service life with proper maintenance, compared to 5–8 years for older rubber bladders.

Dominant application sectors include: military forward fuel logistics, commercial aviation and helicopter support, remote mining and oil & gas camp operations, disaster response fuel supply chains, and civilian emergency preparedness programs. Key procurement decision-makers include defense logistics commands, aviation fuel supply managers, mine site HSE officers, and emergency management agencies.

Types of TPU Fuel Bladder Tanks

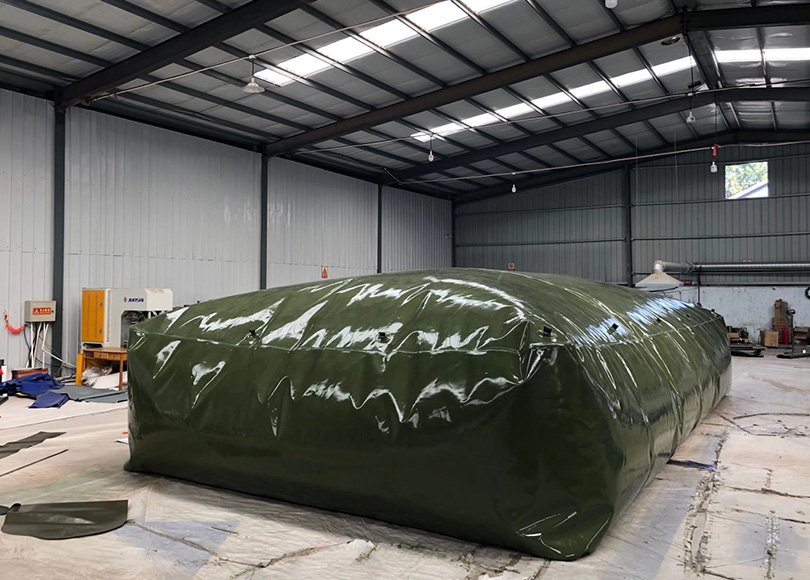

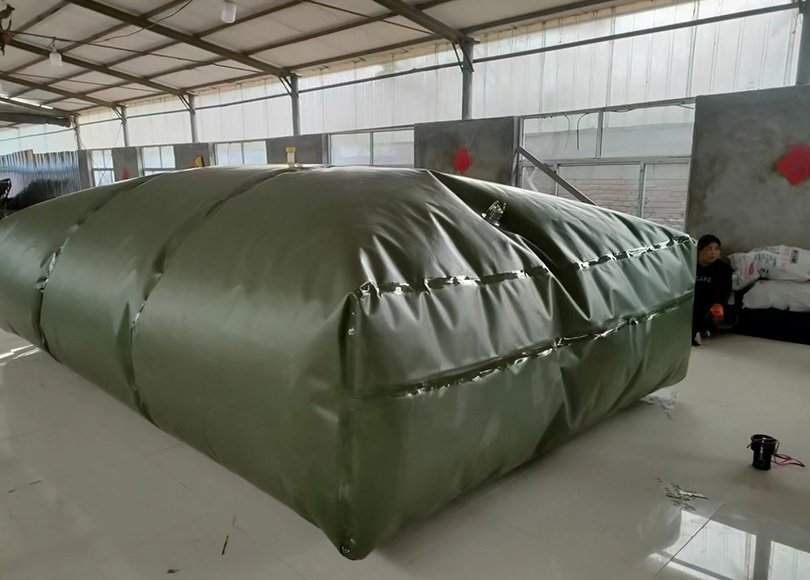

• Pillow Fuel Bladders

Self-spreading design—fills to a low-profile pillow shape when filled, lies flat when empty. Most common type. Capacities from 1 m³ to 500 m³. Suitable for open-ground deployment on compacted surface.

• Frame-Supported Rectangular Bladders

Steel or galvanized frame holds the TPU liner in a rigid rectangular form. Best for large volumes (100–3,000 m³) in semi-permanent fuel farm installations. Easy liner replacement and inspection access.

• Onion / Self-Supporting Fuel Tanks

Conical design with built-in frame structure; self-supporting without external frame. Rapid deployment, easy access for gravity-discharge fuelling operations. Common in military forward-area applications.

• Aviation Refuelling Bladders (Avtur/Jet A-1)

Specialist design for aviation turbine fuel storage. Enhanced antistatic specification, filtered inlet, clean-room fabrication options. Compliance with IATA/AFQRJOS quality standards available.

• Underground Fuel Liner Bladders

TPU liner installed in an excavated pit or existing structure as secondary containment or primary fuel storage. Prevents soil contamination. Used in permanent rural fuel depots and base camps.

• Portable Fuel Jerry Bladders

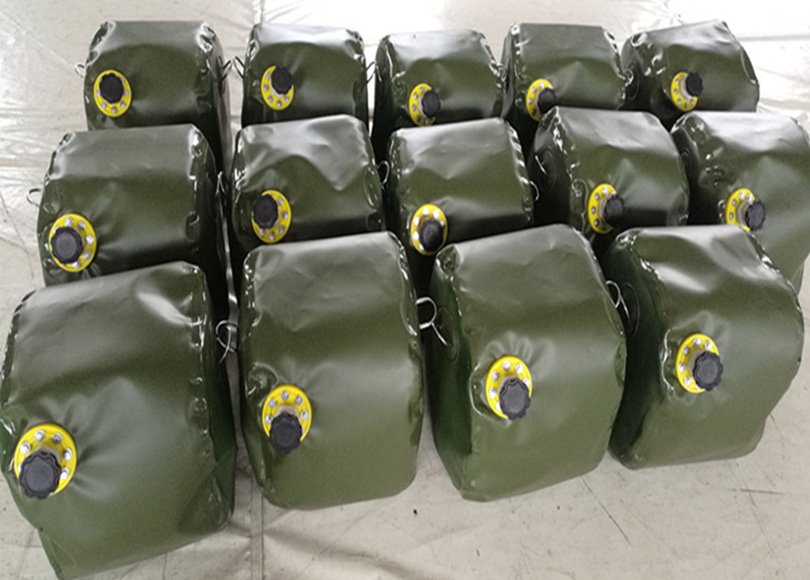

Small-volume (20–200 litre) collapsible fuel containers for individual vehicle refuelling or remote equipment fuelling. Lighter and more packable than rigid jerry cans. Fuel-resistant closures.

How to Select a TPU Fuel Bladder: Buyer's Checklist

Specifying a fuel bladder incorrectly can result in leakage, fuel contamination, safety incidents, or regulatory non-compliance. Use this checklist when evaluating suppliers and products.

1. Verify Fuel Compatibility

Confirm the bladder liner material is rated for your specific fuel type. Get a written confirmation and material compatibility datasheet from the supplier. TPU is generally safe for diesel, gasoline, and jet fuel, but biodiesel blends above B20 and specialized fuels should be verified case-by-case.

2. Confirm Antistatic Specification

All fuel storage bladders must have antistatic inner lining and earthing provision. Ask for the surface resistivity value (should be below 10⁸ Ω) and confirm the earthing lug specification. This is non-negotiable for safety compliance.

3. Check Seam Construction Method

RF-welded seams are the gold standard for fuel bladders—no adhesives, no stitching, fully bonded. Avoid bladders with adhesive-bonded seams for long-term fuel storage. Request seam tensile test results (should be ≥ 85–90% of base material strength).

4. Assess Temperature Range for Your Climate

Standard TPU formulations operate from –40°C to +70°C. Verify the supplier's stated operating temperature range and ask for material testing data at the extremes relevant to your deployment environment.

5. Understand Regulatory & Compliance Requirements

Defense procurement requires MIL-SPEC compliance. Aviation fuel requires IATA/AFQRJOS-aligned storage practices. Some jurisdictions require local fire code compliance for fuel storage above a threshold volume. Request all relevant compliance documentation before committing to a supplier.

6. Evaluate Total Lifecycle Cost

Compare purchase price, logistics cost, installation cost (TPU bladder vs. steel tank civil works), expected service life, repair cost, and end-of-life disposal. A quality TPU bladder with 15+ years service life and field repairability frequently offers better TCO than rigid alternatives in expeditionary applications.

From Fuel Volume & Application to Delivered Bladder

We engineer fuel storage solutions from the ground up. Our process starts with your operational requirements—not a catalog—and delivers a bladder built precisely for your fuel type, volume, climate, and logistics constraints.

Custom Fuel Bladder Service

• Raw Material: We source certified fuel-grade TPU compounds with traceable batch quality documentation, ensuring consistent performance across repeat orders.

• Size Design by Volume: Input your required fuel volume (in m³, litres, or gallons) and site footprint. Our engineers determine optimal bladder dimensions and geometry, balancing stability, fill depth, and ground pressure distribution.

• Application-Driven Specification: Aviation fuel requires filtered inlet and higher cleanliness specification. Military forward area requires enhanced abrasion resistance and camouflage. Arctic deployment requires –40°C-rated TPU. We configure the right specification for your use case, not a generic product.

• Quotation & Lead Time: Submit your requirements via our inquiry form. Standard quotation within 2 business days. Factory lead time: 15–30 working days for custom units. Volume pricing available for orders of 5 or more units. OEM and white-label programs for distributors and government procurement agencies.
