Complexing Agent & Catalyst for Regenerative Wet H₂S Scrubbing Systems

biogas desulfurization solutioniron chelate H₂S scrubbing chemicalbiogas liquid desulfurizer supplierH₂S removal catalyst biogaswet scrubbing biogas chemical manufacturerbiomethane upgrading desulfurization chemical

High-performance biogas desulfurization liquid — iron chelate complexing agent & regeneration catalyst for wet scrubbing. For large-scale biogas & RNG plants. Factory direct B2B supply.

(0) Reviews

Get A Quote

Product Details

Our biogas desulfurization solution is a two-component liquid system — a Complexing Agent and an Oxidation Catalyst — engineered for continuous wet scrubbing of hydrogen sulfide from biogas. Together, they deliver superior H₂S removal performance for large-scale biogas plants, biomethane upgrading facilities, and landfill gas operations where dry media systems may not be economical or practical.

Component A — Complexing Agent (Iron Chelate Solution)

The complexing agent is an aqueous iron chelate solution that serves as the primary H₂S absorber in the scrubbing loop. In the scrubber tower, gaseous H₂S contacts the circulating liquid and reacts with chelated ferric iron (Fe³⁺), which oxidizes the sulfide to elemental sulfur while the iron is reduced to Fe²⁺. The chelate ligand keeps iron in solution across the working pH range (7–9.5), preventing precipitation and ensuring continuous, uninterrupted absorption capacity.

Key features: high iron loading, stable performance across pH 7–9.5, compatibility with packed towers, spray towers, and venturi scrubbers, and minimal foaming.

Component B — Catalyst (Oxidation Catalyst Solution)

The catalyst is added in small quantities to the scrubbing solution to accelerate the re-oxidation of reduced iron (Fe²⁺ → Fe³⁺) using dissolved oxygen from air injection into the oxidation tank. This regeneration step is the heart of a closed-loop, continuous system.

Without effective catalysis, air oxidation of Fe²⁺ is slow, requires excessive aeration, and leads to rapid degradation of the chelate ligand — significantly increasing operating costs. Our proprietary catalyst accelerates the oxidation reaction by 3–5×, dramatically reducing air consumption, extending solution life, and improving overall system economics. Dosing rate is low (0.5–2.0% v/v), making it cost-effective even for large circulating volumes.

Product Parameters

Complexing Agent Specifications

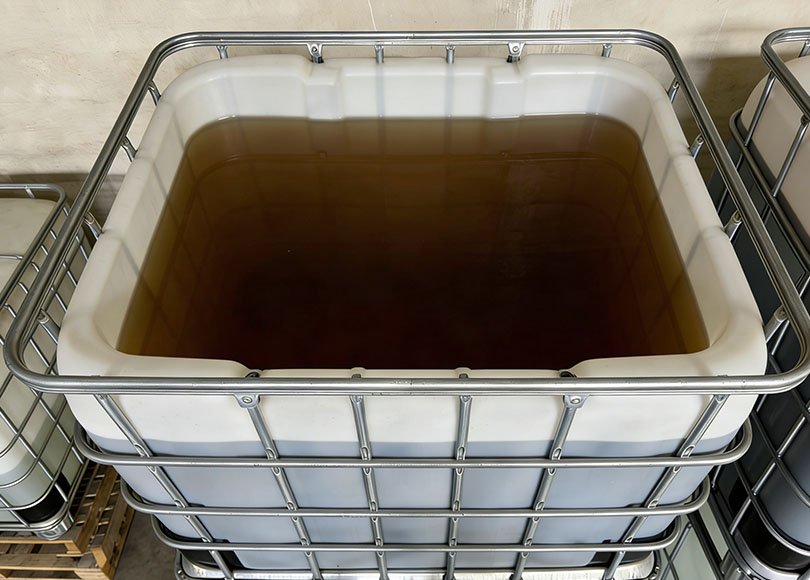

Appearance：Dark amber liquid, clear to slightly turbid

Active Component：Iron (III) chelate complex, Fe³⁺ ≥3.5% w/v

pH (as supplied)：8.0 – 9.0

Working pH Range：7.0 – 9.5

Operating Temperature：5°C – 55°C

Density：1.10 – 1.15 g/mL

H₂S Removal Efficiency：≥95% removal at designed L/G ratio

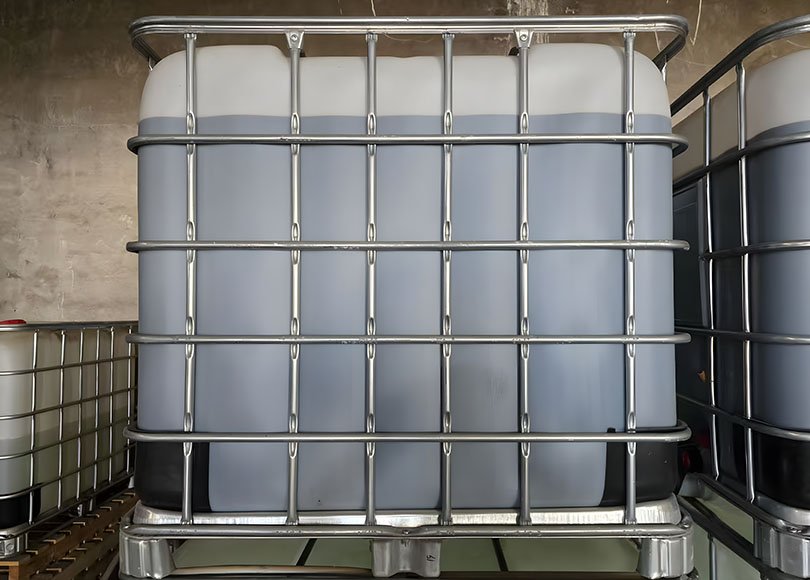

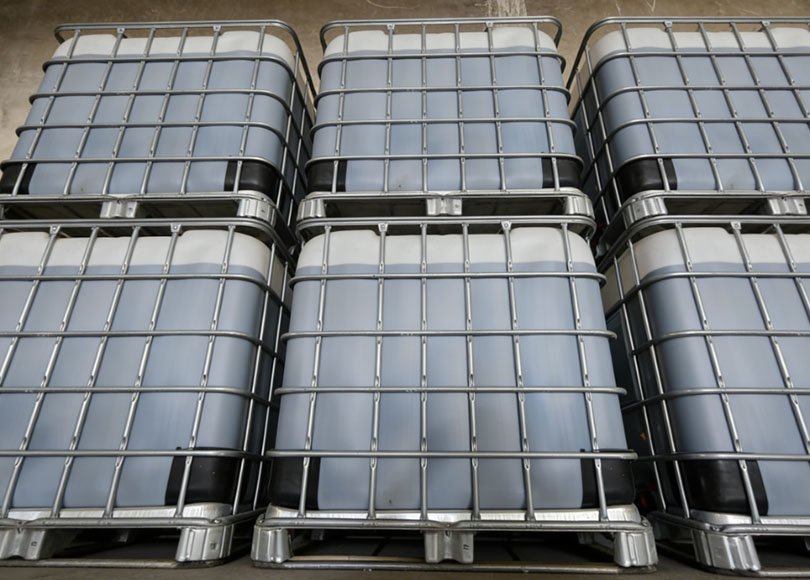

Packaging：200 L drums; 1,000 L IBC totes; bulk tank

Catalyst Specifications

Appearance：Light yellow to amber liquid

Active Component：Proprietary organic oxidation catalyst, ≥15% active

pH (as supplied)：6.5 – 7.5

Dosage Rate：0.5 – 2.0% v/v of circulating solution volume

Re-oxidation Enhancement：Fe²⁺ → Fe³⁺ conversion rate: 3–5× faster vs. uncatalyzed

Packaging：25 L jerricans; 200 L drums

Application Scenarios

Large Biogas Plants

Continuous flow wet scrubbers at industrial digesters processing >5,000 m³/day biogas

Biomethane / RNG Upgrading

First-stage H₂S removal before membrane or PSA upgrading to pipeline-quality gas

Municipal Wastewater Plants

High-H₂S sludge digester gas where dry media replacement is logistically challenging

Industrial Process Biogas

Breweries, paper mills, chemical plants with organic effluent anaerobic treatment

Fuel Cell & Micro-turbine Feed

Ultra-low H₂S specification (<1 ppm) applications demanding polishing-grade removal

Carbon Credit & ESG Projects

Biogas upgrading under Verra, Gold Standard, or national RNG certification programs

Frequently Asked Questions

How long does the complexing agent solution last before replacement?

What is the usage ratio of complexing agent to catalyst?

Can your liquid system achieve outlet H₂S below 10 ppm?

How is the elemental sulfur byproduct handled?

Are these chemicals safe to handle on-site?

Do you provide trial or evaluation samples?

Related Products

Solid

Biogas Desulfurization Agent (Dry Media)

Iron oxide granular media for dry bed H₂S removal; ideal for small-to-medium biogas systems and as polishing stage

System

Wet Scrubber Towers & Oxidation Tanks

Packed column scrubbers and aeration tanks engineered for iron chelate liquid desulfurization systems

Service

Solution Analysis & Optimization Service

Laboratory analysis of used solutions with dosing optimization recommendations to extend solution life
